Baby Lock Array – 6-Needle Embroidery Powerhouse

The Baby Lock Array multi-needle embroidery machine brings fast, professional stitching and vivid color control to your studio, delivering smooth, consistent results. It’s part of our curated lineup of Baby Lock sewing machines designed to help you finish garments, quilts, and décor beautifully.

Visit Calico Station for hands-on demos and sewing classes that help you get comfortable with multi-needle embroidery. Try the Array in person and see how quickly you can elevate your projects.

Feature Highlights & Specifications


Array Embroidery Machine Overview

Harness your fearless creativity with the Baby Lock Array multi-needle embroidery machine. Use a brilliant high definition touchscreen as the control center for all of your embroidery masterpieces. Make quick changes to designs and start embroidering right away.

Create your own designs or use any of the 878 built-in designs. This powerful six-needle machine includes a variety of features, including a crosshair positioning laser, that will make your wildest creative dreams become a reality.

Key Callouts

  • Embroidery Crosshair Positioning Laser
  • 7-7/8" x 11-3/4" Embroidery Field
  • IQ Intuition Monitoring®
  • 1,000 Stitches per Minute
  • 6 Needle Machine
  • BABY LOCK Embroidery Machine

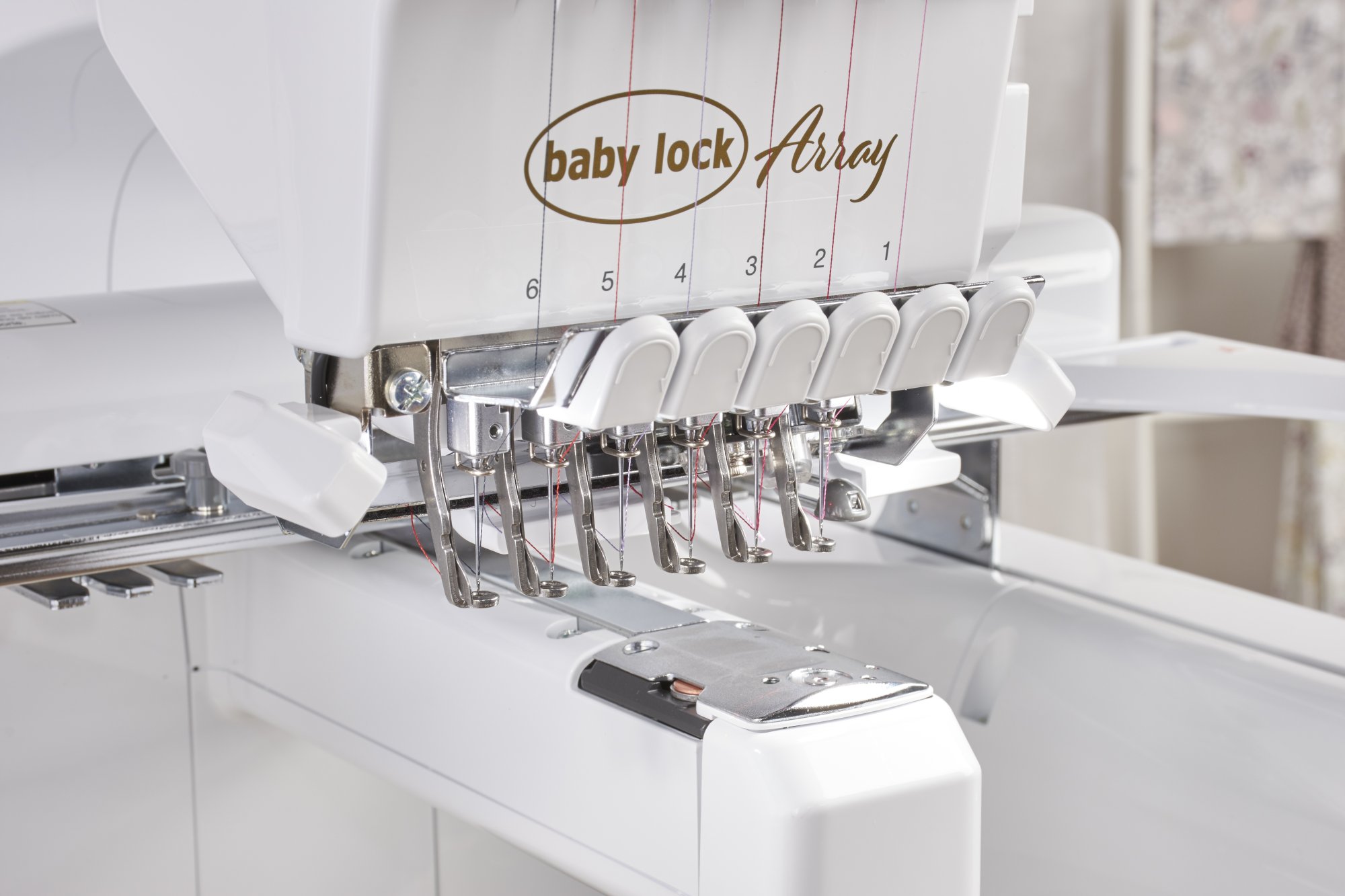

Six Efficient Needles

With six needles, you’ll love how quickly you can embroider large, multi-colored designs; and you can finish projects without excessive thread changes between jobs.

Embroidery Crosshair Positioning Laser

Use the crosshair positioning laser to preview the position of your embroidery design. Then adjust the position and angle for precise alignment. Your embroidery will be perfectly placed every time.

IQ Intuition Monitoring®

Keep track of your project’s progress with this convenient feature that alerts your phone when the bobbin needs to be changed, if a thread breaks, if a thread needs to be changed and when stitching is done.

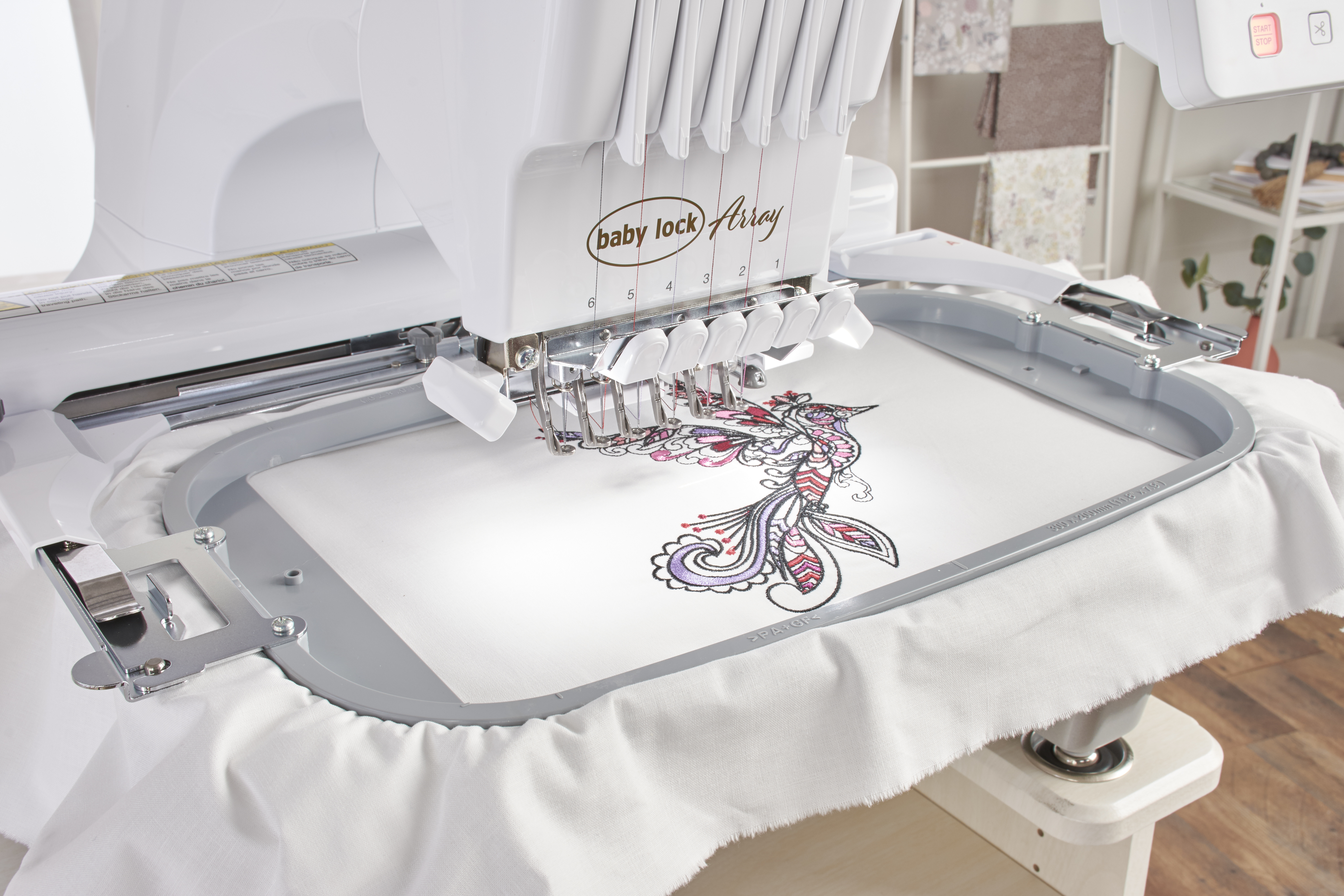

7 7/8" x 11 3/4" Embroidery Field

Embroider on a massive 7 7/8" x 11 3/4" (200mm x 300mm) space, giving you more room than ever before!

Wireless Capability

Using optional Palette 11 software, easily send designs to your computer for editing or to machine for stitching. Wirelessly download and install software updates for the machine.

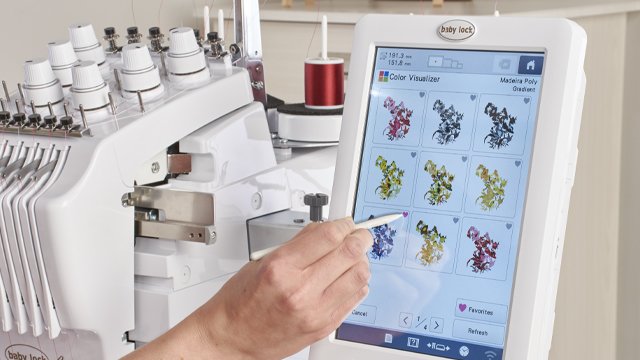

Intuitive Color Management

Use Color Visualizer to effortlessly find a variety of color schemes for your projects. Select from random, gradient, vivid, or soft effects.

Array Embroidery Machine

Convenience Features

  • 65 font styles
  • 24 Built-in tutorial videos
  • Built-in memory (10MB)
  • Bobbin system: front loading, vertical rotary hook
  • Uses pre-wound bobbins (Class “L”)
  • Push button, automatic needle threader
  • 2 LED lights to illuminate work area
  • Upper thread breakage sensors
  • Manual tension control
  • Automatic thread trimmer (upper and lower)
  • Start/stop button with lock feature
  • Onscreen speed control while stitching
  • Change screen and thumbnail background color
  • Embroidery shortcut key
  • Change embroidery position using speed keys
  • Needle bar/frame move key repositions the hoop for easy access
  • Advanced editing features
  • Stitch Simulator
  • No-Sew Region capability
  • Auto Applique
  • Auto Stipple
  • Echo Quilt

Included Accessories

  • Accessory case
  • Instruction guides
  • Embroidery frames and grids
    • 200mm x 300mm (7 7/8" X 11 3/4")
    • 130mm x 180mm (7" X 5")
    • 100mm x 100mm (3 7/8" X 3 7/8")
    • 60mm x 40mm (2 1/4" X 1 1/2")
  • USB cable
  • Needle set x 2
  • Prewound bobbin x 6
  • Spool net x 6
  • Spool mat x 6
  • Touch pen
  • Needle changing and threading tool
  • Needle plate cover
  • Oiler
  • 60-Day Trial of Online Sewing Classes
  • Plus more

Optional Accessories

  • Palette 11 (ECS11)
  • 4" x 4" Versatile magnetic frame M kit (ENMF-100S)
  • 5" x 7" Versatile magnetic frame L kit (ENMF-180S)
  • Magnetic frame set (ENMFA50)
  • Magnetic sash frame (ENMF360)
  • Tubular frame table (ESTABLE)
  • Wide table (ENTABLE)
  • Embroidery stand (ALSTAND)
  • Flat brim cap frame set (EPCF4)
  • Cap frame set (EPCF3)
  • Quilt frame (ENF200)
  • Border frame (ENBF)
  • Flat frame (BMP-FF)
  • Round frame set (ENRFS)
  • Sleeve frame (ENSF)

Warranty

  • 25 year limited
  • 2 year parts
  • 5 year circuit boards
  • 5 year electrical
  • 1 year labor
