70 Square Inches of Workspace

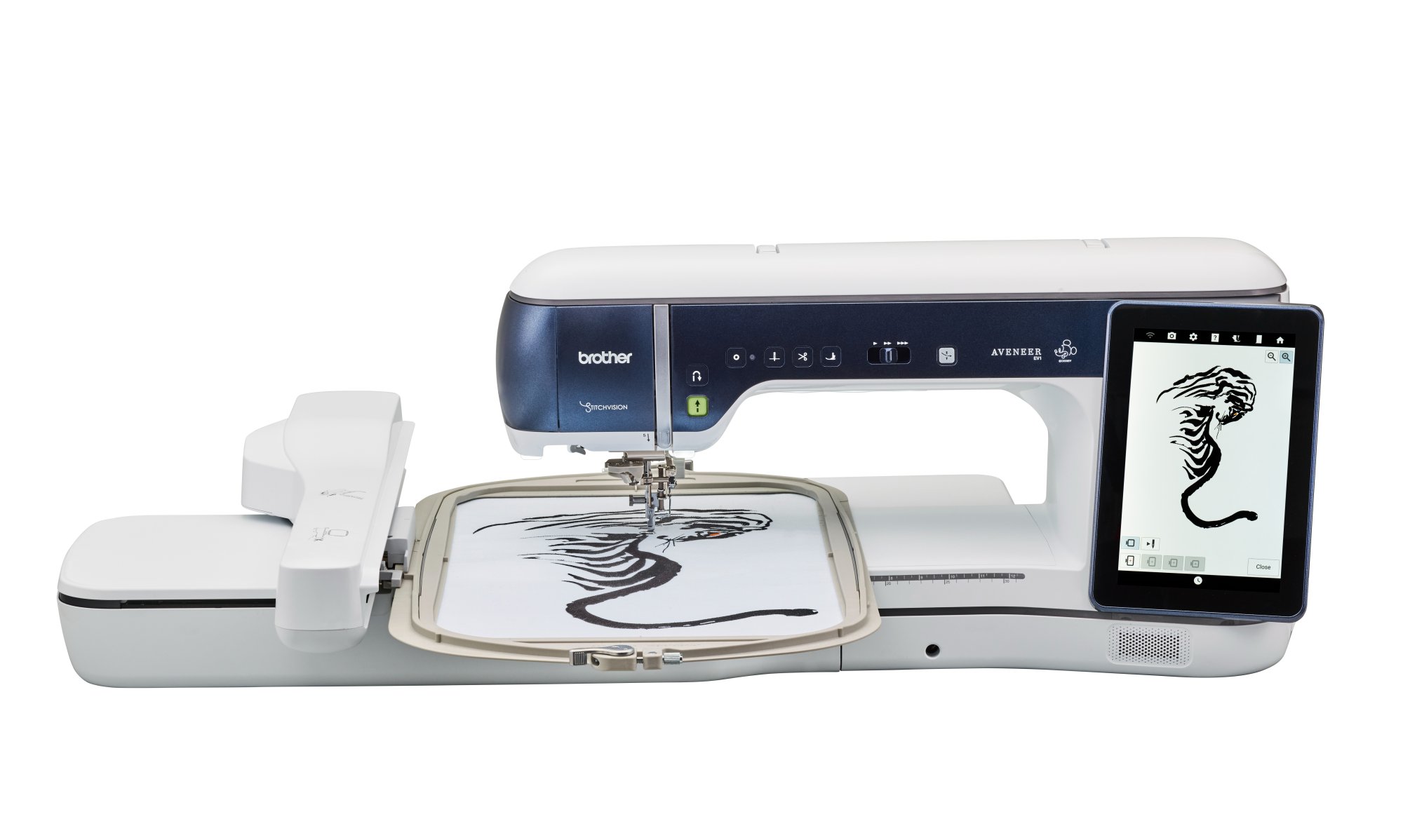

The largest workspace of any Brother flatbed machine. Ever. The impressively large workspace features a 14.1” needle-to-arm distance that’s ideal for working with one-of-a-kind upcycled creations, king-sized quilts, custom garments, and unique home décor. Effortlessly create projects of almost any size with the Aveneer EV1.



StitchVision Technology

An enlightened way to preview stitches before making them. Using intelligent light projection, StitchVision Technology provides the ability to preview, audition, and edit designs and stitches directly on fabric. The enhanced projection area measures an outstanding 8” x 5” (127 x 203 mm) — more than 2.5 times larger than the current XP series machine — and now extends from 90° to 180°. Operational in both sewing and embroidery modes, it enables real-time editing within the projection area, includes a square for angles and a circle for echo stitching, and projects an illuminated grid for easy-to-follow precision. Projects in one of 16 color options for clear, easy-to-see resolution on any fabric.

Buttonhole Preview

A first in the category and exclusive to Brother. The Aveneer EV1 features the unique convenience of Buttonhole Preview. This innovative feature uses the powerful projector to preview the style, vertical or horizontal placement, and spacing of buttonholes. It’s a real game-changer for garments

Dual-Tip Stylus

For more accuracy than ever before, the included Dual-Tip Stylus lets you easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move, or enhance projects with precision.

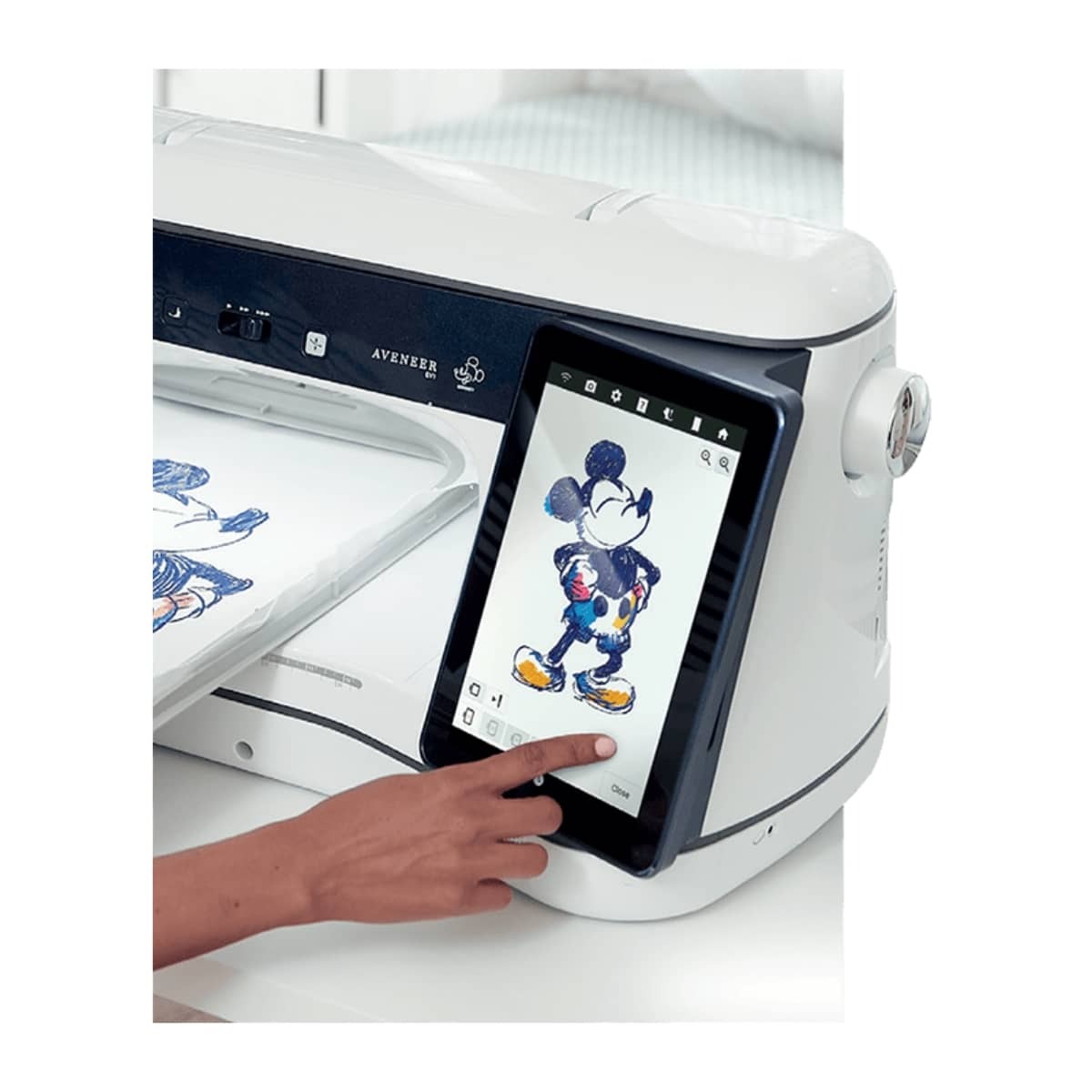

Large 10.1” Capacitive LCD Touchscreen

The control center of the Aveneer EV1 displays more than 16.7 million color combinations with adjustable brightness for comfortable, strain-free viewing. Putting everything from basic operations to advanced embroidery functions at your fingertips, it’s an incredibly useful tool for reviewing detailed steps, categories, and browsing designs. With intuitive navigation similar to a tablet, it responds to familiar sliding, swiping, scrolling, and pinch-to-zoom actions.

1,858 Built-In Embroidery Designs

An abundant library ready for every creative assignment. Browse through 31 fonts, 13 new quilt designs, and 4 appliqué patterns. Set your sights on the 8 imaginative botanical patterns or 6 realistic animal designs — including an elephant, tiger, and butterfly. There are 7 large split patterns (including 2 new ones) and a new alphabet pattern set. The Aveneer EV1 also includes 800 built-in sewing stitches — the most variety Brother has ever included — and 18 long-stitch patterns inspired by colorful string art for dramatic and eye-catching embellishment.

217 Disney Character Patterns

For Disney enthusiasts, the Aveneer EV1 includes 217 Disney character patterns — 13 additional modern and 6 new vintage Mickey Mouse designs, one new Pooh and Princess design, and two each from Pixar and film designs. These designs are built into the machine and ready to stitch from day one.

Voice Guidance Feature

When activated, this feature provides a gentle, audible heads-up about next steps and offers guidance throughout the lifecycle of design projects. Alerts include thread change notifications and project completion. Designed to facilitate easier learning, it eliminates the need for users to rely on the LCD display or to struggle with reading smaller type. Available in a choice of voices in 6 languages including English, French, and Spanish.



Quiltbroidery

With five options of two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with five hexagon shapes for additional creativity, plus single or triple stitch options for sash quilting stitches that stand out on every project.

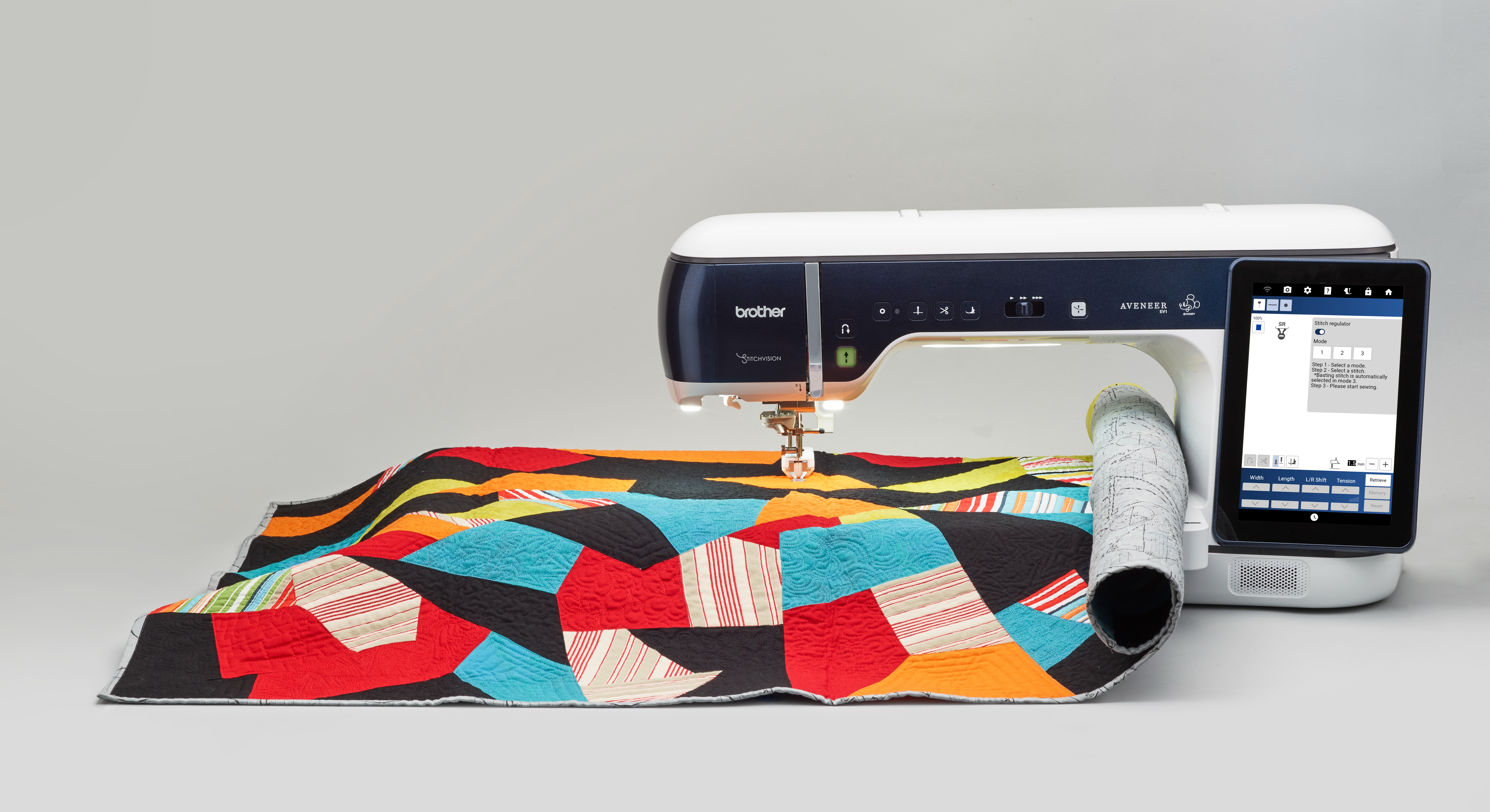

Edge-to-Edge Quilt Feature

Eliminating the need for a long arm, this feature makes it possible to complete quilt tops on the Aveneer EV1 — even with a 10” x 10” magnetic hoop. With 15 patterns to choose from and easy-to-follow instructions that guide you through calculations, rows, and rehoopings, this opens up an entirely new category of quilting projects on a flatbed machine.

ISR Intelligent Stitch Regulator

Intuitive infrared technology keeps stitch lengths even by adjusting the timing of the needle to match the speed of the fabric being fed through the machine. The ISR operates in one of three modes: Continuous, Intermittent, and Basting. Its height can be adjusted easily in the settings, while the curved design of the included feet — Regular, Echo, and Open-Toe — keeps the fabric flowing effortlessly.

ISR Edge Detection System

The Edge Detection System provides options for free-motion stitching — ideal for quilt projects of any size. Working alongside the ISR Intelligent Stitch Regulator, it gives you precise control over every pass across the quilt surface.

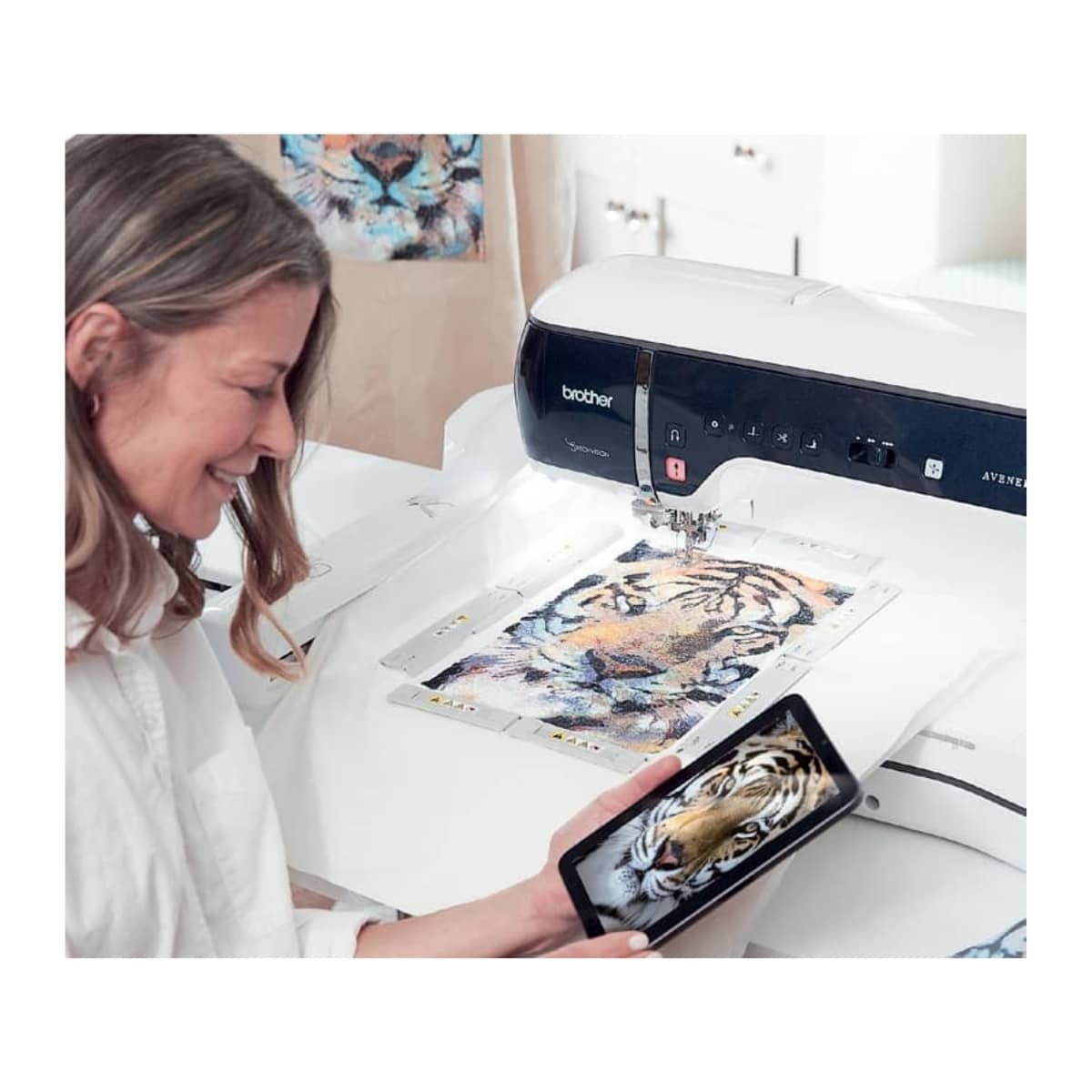

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI technology to transform photos or images into thread art — directly on-screen. With a choice of ten embroidery conversion functions, the Picture Play Embroidery function grants users the ability to effectively “paint with thread.” Use the free My Design Snap App to transfer an image from your mobile device directly to the Aveneer EV1, where the Picture Play Embroidery Function converts it into thread art.

My Design Center Software

Brother’s legendary built-in software has been elevated for enhanced personalization and customization with the Aveneer EV1. For embroidery projects, there are 54 decorative fill patterns with ten-key input for sizing and improved design editing. A numbering system for stamp shapes is also included for easy reference purposes.

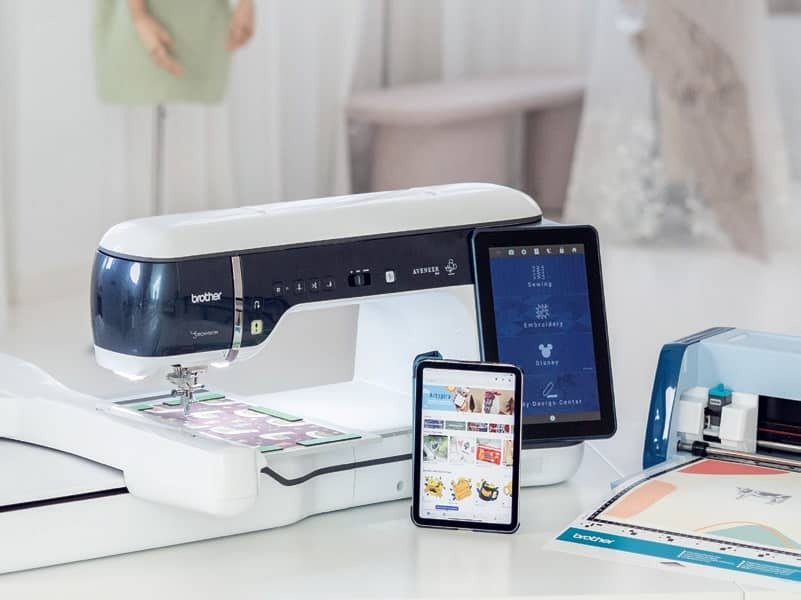

Wireless LAN Connectivity

The Aveneer EV1 connects to your wireless network for seamless file transfer. The My Connection Feature sends files back and forth between the Aveneer EV1 and select ScanNCut DX machines. The free Design Database Transfer software allows the transfer of embroidery designs from your PC directly to the machine — no USB or cables required.



Artspira Mobile App

The Artspira Mobile App unlocks seven bonus designs and three in-the-hoop projects exclusive to Aveneer owners. Create unique designs by taking your drawings to stitches on a mobile device or tablet. The Drawing Tool feature includes single and zigzag stitch options, shapes, and templates. With Artspira’s augmented reality feature, preview how embroidery designs will appear on finished garments before you ever thread the needle.



My Stitch Monitor App

A multitasking delight that provides the freedom of monitoring embroidery projects from just about anywhere. Download this free app and when you need to step away from the Aveneer EV1, simply connect wirelessly through your mobile device. Monitor the status of your project, access information on all thread colors, and receive notifications including thread changes, error alerts, and project completion.

Oversized, Easy-to-Use Embroidery Frame

The largest and most advanced embroidery frame Brother has ever offered. Measuring 11 5/8” x 18 1/4” with an enhanced, easier-to-release lever. Four frames are included in total: 4” x 4” for monograms and small designs, 5” x 7” for clothing embellishment, 10 5/8” x 10 5/8” for quilts and jacket backs, and the flagship 11 5/8” x 18 1/4” frame for your largest designs.

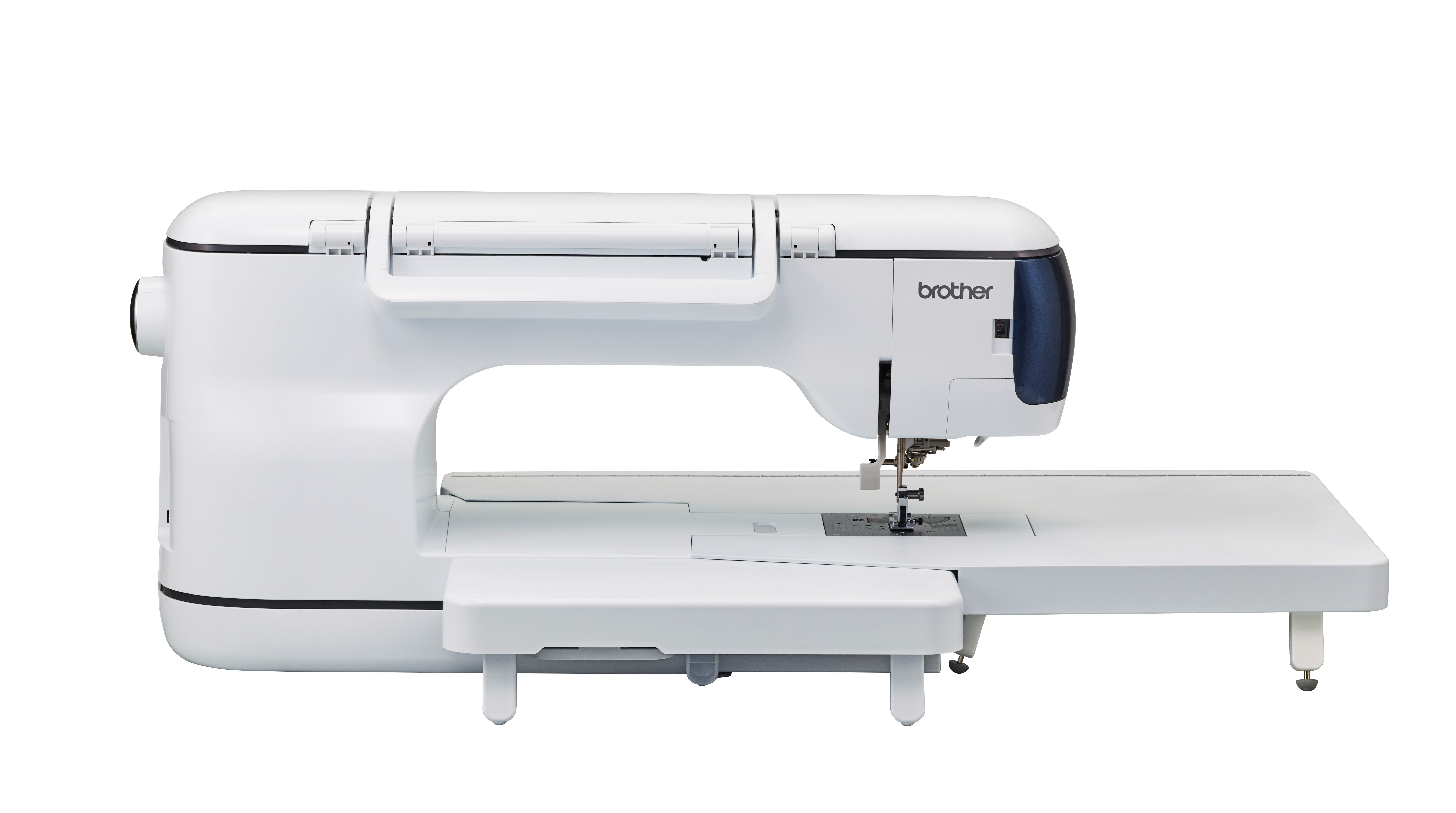

Hoop Support

A support table is included to help support the larger hoop — which makes it easier than ever to create sizable sewing and embroidery projects. Combined with the Advanced N+ Foot and the ISR Intelligent Stitch Regulator, it’s easy to see how the EV1 makes quilting a more creative and accessible endeavor — for everyone.

Advanced N+ Foot

A durable coating and plastic guide ensure smooth feeding and alignment of fabric. Combined with the expanded projection areas and the ISR Intelligent Stitch Regulator, the Advanced N+ Foot is a key part of what makes quilting on the EV1 feel effortless across every project.

Powerful LED Lighting

Clear, bright, and adjustable for perfect clarity and less shading. The Aveneer EV1’s LED lighting is designed to illuminate your work area without glare or eye strain, even during long sewing and embroidery sessions.

Modern Styling

Sleek lines with a metallic blue exterior that looks as good as it performs. The Aveneer EV1 is a statement piece on any sewing table — designed for the modern maker who demands both performance and beauty in equal measure.

Key Specifications

• Workspace: 70 square inches — largest of any Brother flatbed machine
• Needle-to-arm distance: 14.1”
• Largest embroidery frame: 11 5/8” x 18 1/4”
• Display: 10.1” capacitive LCD touchscreen — 16.7+ million colors, adjustable brightness
• Built-in embroidery designs: 1,858 (including 217 Disney character patterns)
• Built-in sewing stitches: 800
• Built-in fonts: 31
• Quilt designs: 13 built-in; 15 edge-to-edge patterns
• Appliqué patterns: 4
• Long-stitch patterns: 18
• Large split patterns: 7
• Decorative fill patterns (My Design Center): 54
• StitchVision projection area: 8” x 5” (203 x 127 mm)
• Projection range: 90° to 180°
• Projection color options: 16
• ISR modes: Continuous, Intermittent, Basting
• Voice guidance languages: 6 (including English, French, Spanish)
• Connectivity: Wireless LAN (Wi-Fi)
• Included frames: 4” x 4”, 5” x 7”, 10 5/8” x 10 5/8”, 11 5/8” x 18 1/4”
• Included presser feet: 17 (including Quilting C-Foot, Free Motion Echo Quilting E-Foot, Free Motion Open-Toe Quilting Foot, 1/4” Piecing Foot, Buttonhole Foot, Compact MuVit Digital Dual Feed Foot, Zigzag Foot, Embroidery Couching Y-Foot, Advanced N+ Foot)
• Accessory case: Included (fits within machine arm)
• Exterior: Metallic blue
• Compatible apps: Artspira, My Stitch Monitor, My Design Snap (free download, wireless connection required)
• Free downloadable software: Design Database Transfer
